PRODUCT & APPLICATION OVERVIEW
TP
Circular pumps, close-coupled type
Grundfos
Applications

Circulation of hot or cold water in
  • Heating system
  • District heating plants
  • Local heating plants
  • Domestic hot water systems
  • Cooling & air-conditioning systems

Technical data

Flow, Q:max. 4600 m³/h
Head, H:max. 170 m
Liquid temp.: - 25° C to + 150° C
Operat press:mx. 25 bar

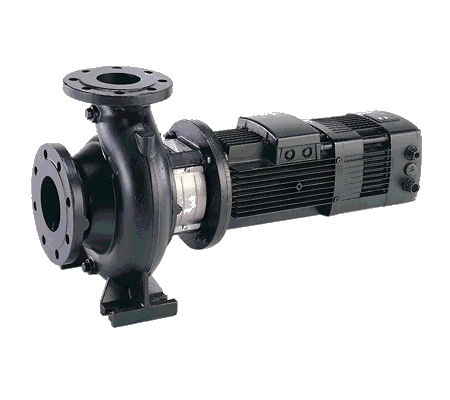

NB, NBG
Single-stage standard pumps

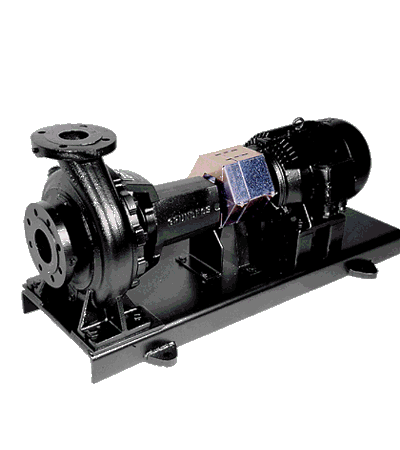

NK, NKG
Single-stage standard pumps
Technical data

Flow, Q:max. 460 m³/h
Head, H:max. 95 m
Liquid temp.: - 25° C to + 140° C
Operat press:mx. 16 bar
Applications

The pumps are suitable for liquid transfer in
  • Heating system for block of flats
  • District heating plants
  • Cooling & air-conditioning systems
  • Washdown systems
  • Other industrial systems

Technical data

Flow, Q:max. 2000 m³/h
Head, H:max. 150 m
Liquid temp.: - 25° C to + 140° C
Operat press:mx. 16 bar
Applications

The pumps are suitable for liquid transfer in
  • Water supply systems
  • District heating plants
  • Cooling & air-conditioning systems
  • Industry
  • Fire fighting systems
  • Environment engineering

Contrex

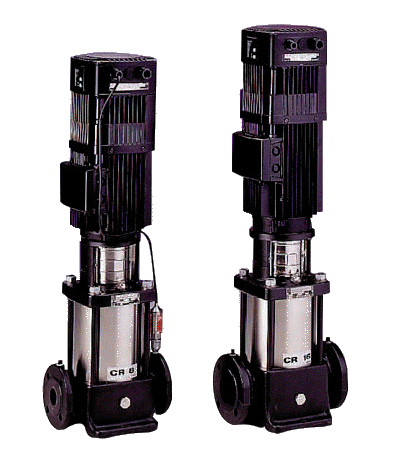

CR, CRI, CRN
Multistage centrifugal pumps
Applications

Circulation of hot or cold water in
  • Washing systems
  • Cooling & air-conditioning systems
  • Water supply systems
  • Water treatment systems
  • Industrial systems
  • Boiler feeding systems

Technical data

Flow, Q:max. 120 m³/h
Head, H:max. 330 m
Liquid temp.: - 40° C to + 180° C
Operat press:mx. 33 bar

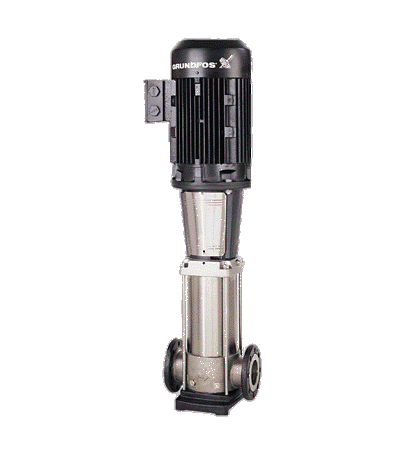

CR, CRN high pressure
Multistage centrifugal pumps
Technical data

Flow, Q:max. 120 m³/h
Head, H:max. 480 m
Liquid temp.: - 30° C to + 120° C
Operat press:mx. 50 bar
Applications

The pumps are suitable for liquid transfer in
  • Washing system
  • Water treatment systems
  • Industrial plants
  • Boiler feeding systems

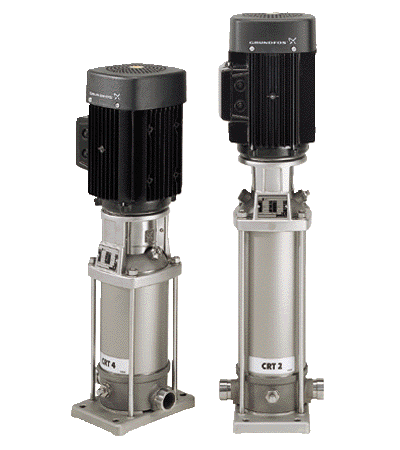

CRT
Multistage centrifugal pumps
Technical data

Flow, Q:max. 22 m³/h
Head, H:max. 250 m
Liquid temp.: - 20° C to + 120° C
Operat press:mx. 25 bar
Applications

The pumps are suitable for liquid transfer in
  • Washing & cleaning systems
  • Process water systems
  • Sea water systems
  • Pumping of acids and alkalis
  • Ultra filtration systems
  • Reverse osmosis systems
  • swimming baths

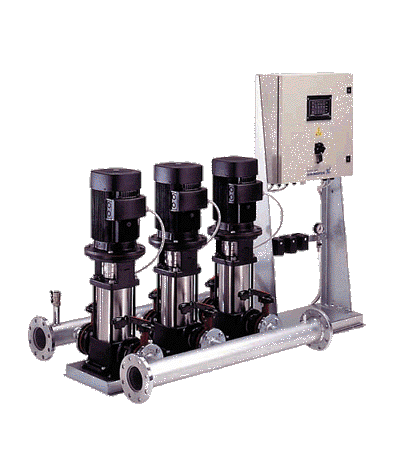

HYDO MPC/2000/1000, HYDRO SOLO, HYDRO MULTI-E
Complete pressure boosting systems
Technical data

Flow, Q:max. 720 m³/h
Head, H:max. 160 m
Liquid temp.: - 0° C to + 70° C
Operat press:mx. 16 bar
Applications

Hydro MPC/2000/1000 are suitable for pressure boosting in
  • Water supply systems
  • Irrigation systems
  • Water treatment systems
  • Fire fighting systems
  • Industrial plans

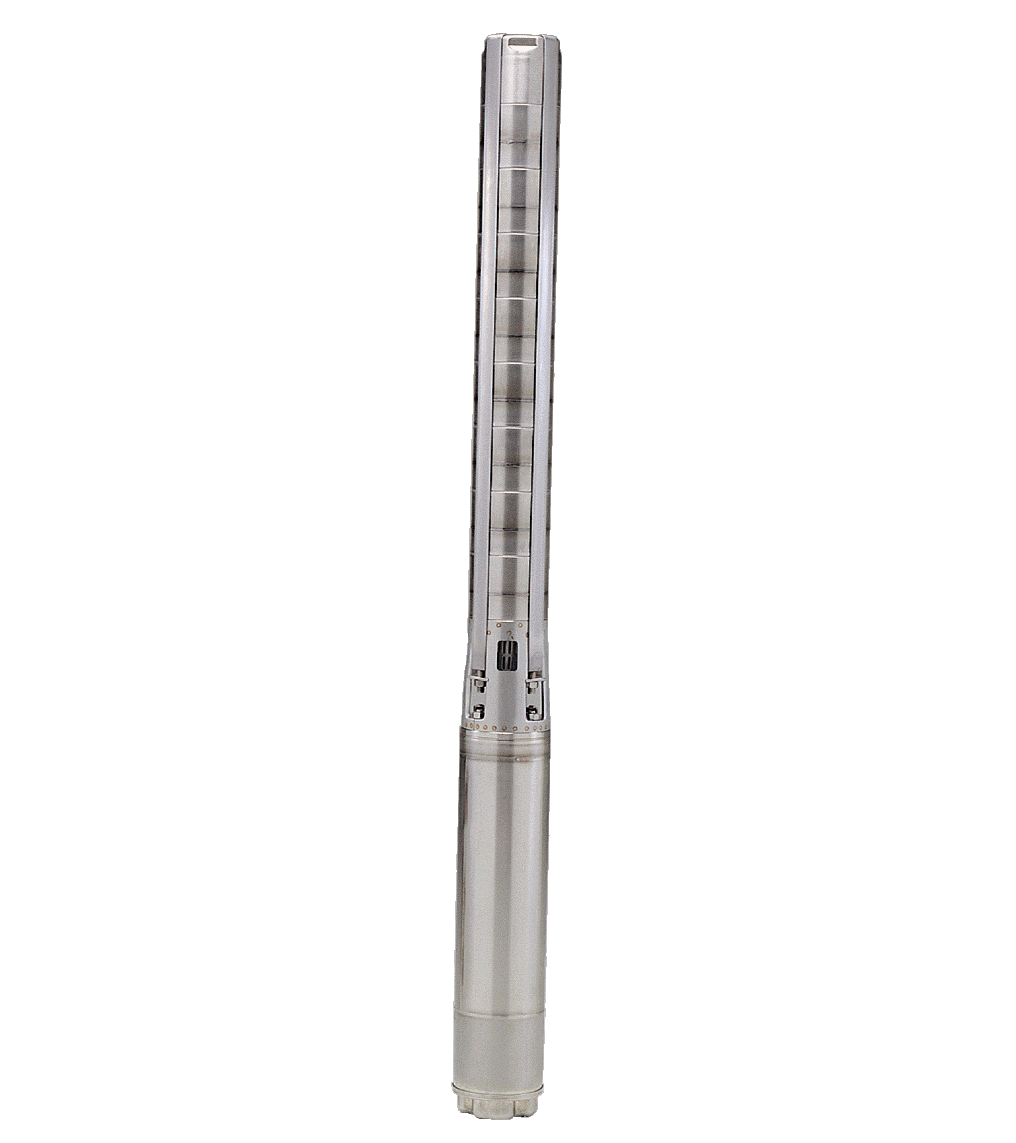

SPA, SP, SP-G
4", 6", 8", 10", 12" submersible pumps
Technical data

Flow, Q:max. 470 m³/h
Head, H:max. 670 m
Liquid temp.: - 0° C to + 60° C
Installation depth. : max. 600 m
Applications

The pumps are suitable for
  • Grundwater supply to waterworks
  • Irrigation in horticulture and agriculture
  • Grundwater lowering
  • Pressure boosting
  • Industrial application

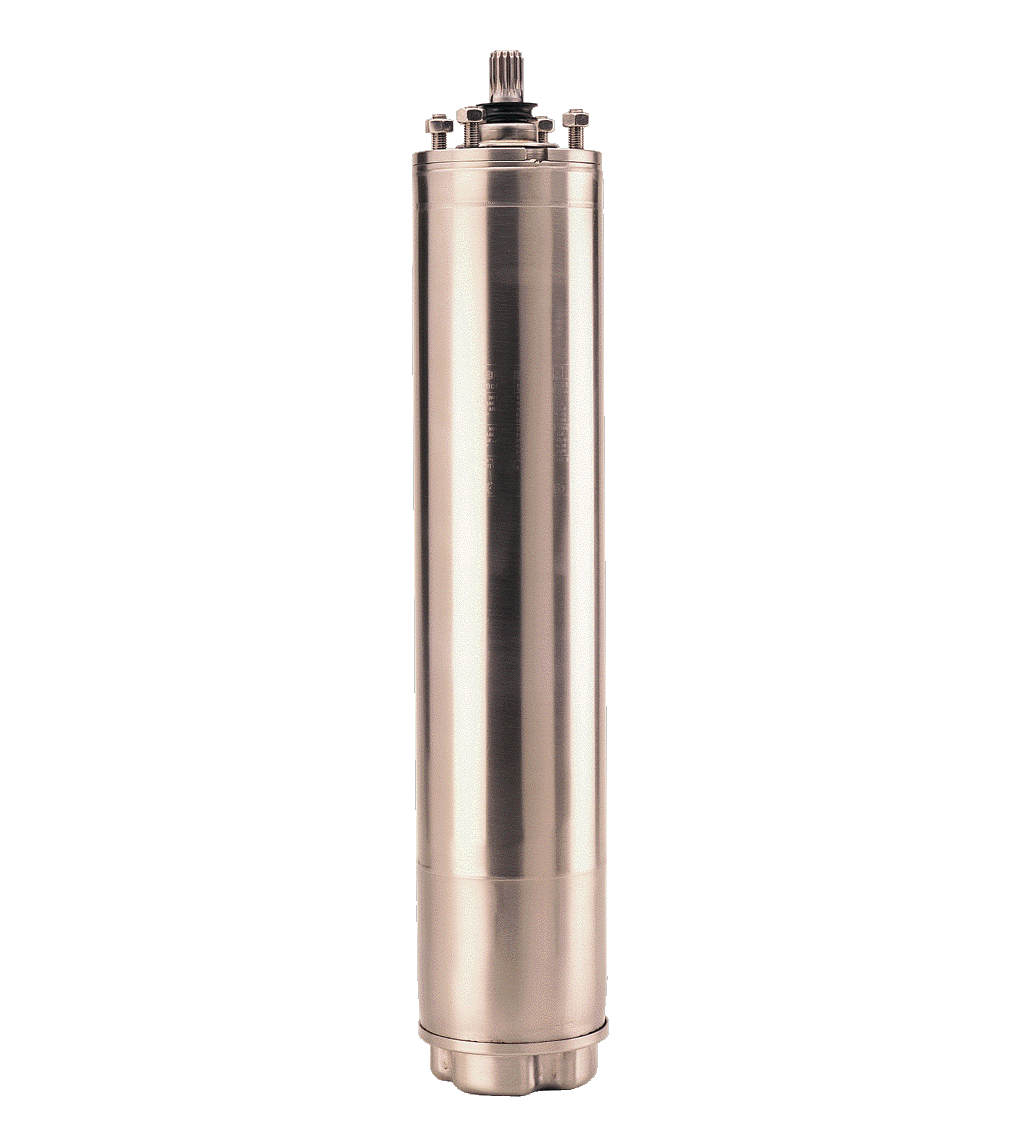

MS MOTORS
Stainles steel 4" & 6" submersible motors
Motor Size

4" motor : 0.37 to 7.5 kw
6" motor : 5.5 to 30 kw
Applications

The Grundfos MS submersible motors can be fitted on all Grundfos SPA, SP pumps and can be used in the high-pressure booster modules, type BM & BMB

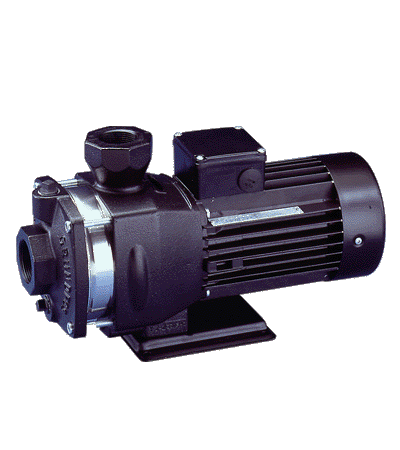

CH, CHN
Multistage centrifugal pumps
Technical data

Flow, Q:max. 14 m³/h
Head, H:max. 55 m
Liquid temp.: - 0° C to + 90° C
Operat. press.: max 10 bar
Applications

The pumps are suitable for liquid transfer in
  • Pressure boosting
  • Domestic water supply systems
  • Cooling systems
  • Air-conditioning systems
  • Horticulture irrigation systems

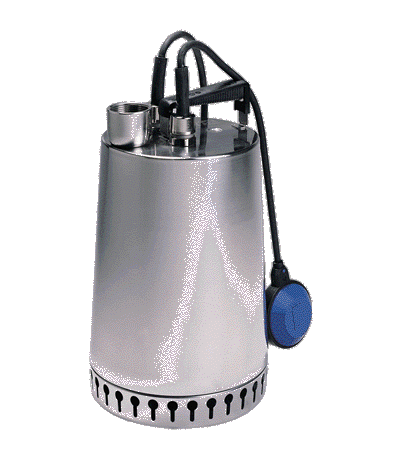

UNILIFT CC, KP, AP12, AP35B/50B
Submersible drainage and effluent pumps
Technical data

Flow, Q:max. 35 m³/h
Head, H:max. 18 m
Liquid temp.: - 0° C to + 55° C
Practicle size : f10-50 mm
Applications

The pumps are suitable for
  • Drainage of flooded cellars
  • Pumping of household wastewater
  • Grundwater lowering
  • Emptying of swimming-pools and excavations
  • Drainage of drain wells
  • Empting of tanks and reservoirs

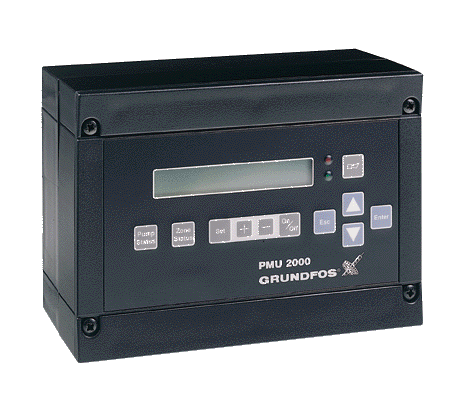

PMU 2000, PCU 2000
Pump Controllers
Applications

PMU 2000
  • Parallel connection of up to eight pumps
  • Central reading out of various status information

PCU 2000
  • Fault indication for each pump
  • Externl setpoint influence
  • Start/stop system

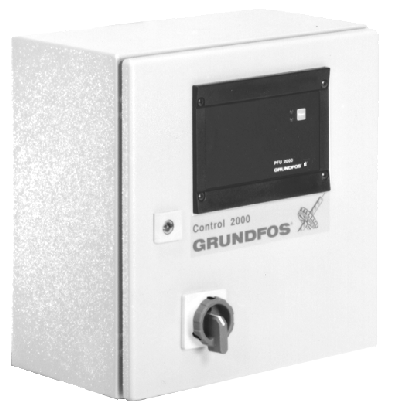

CONTROL 2000
Pump Controllers
Applications

Control 2000 is suitable for parallel connection of pumps in
  • Water supply systems
  • Irrigation systems
  • Water treatment systems
  • Fire fighting systems
  • Industrial plants

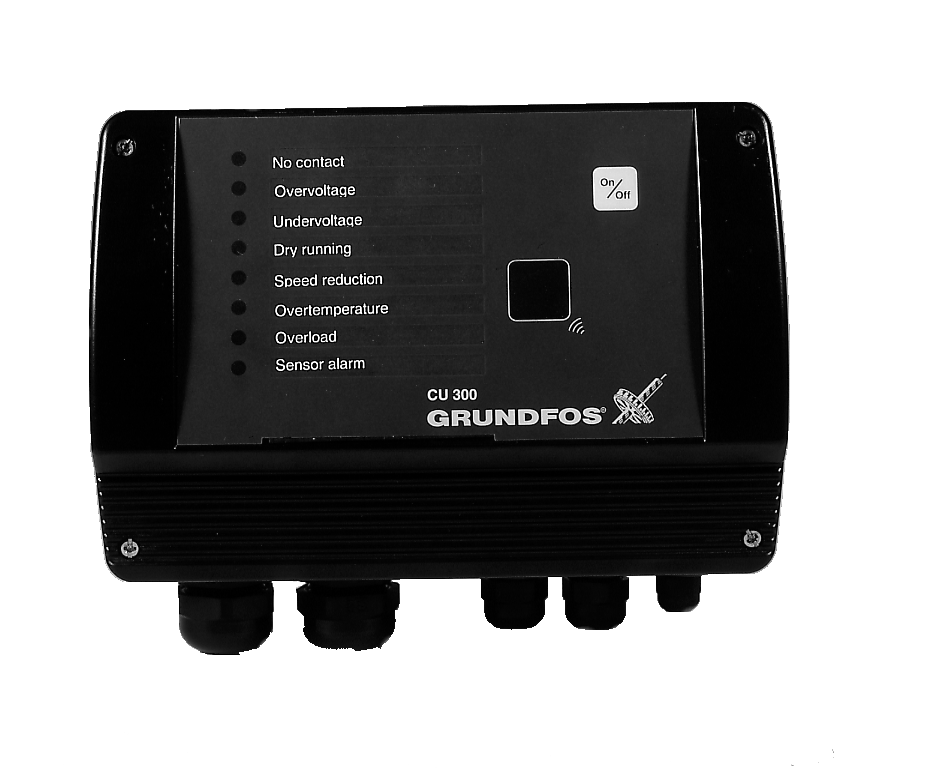

CU3, CU300, CU301
Control and monitoring unit
Applications

monitoring and protection of pump installations
Home ½History ½ Services ½ Products ½Contact us
TP NB, NBG NK, NKG CR, CRI, CRN CR, CRN high pressure CRT HYDO MPC/2000/1000 SPA, SP, SPG

MS Motors CH, CHN  KP, AP12, AP35B/50B PMU 2000, PCU 2000 CONTROL 2000 CU3, CU300, CU30

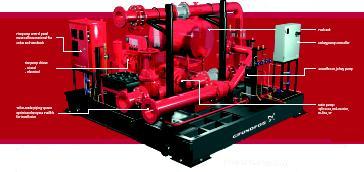

Fire Fighting Pumps
